Filling and Capping Machine

/

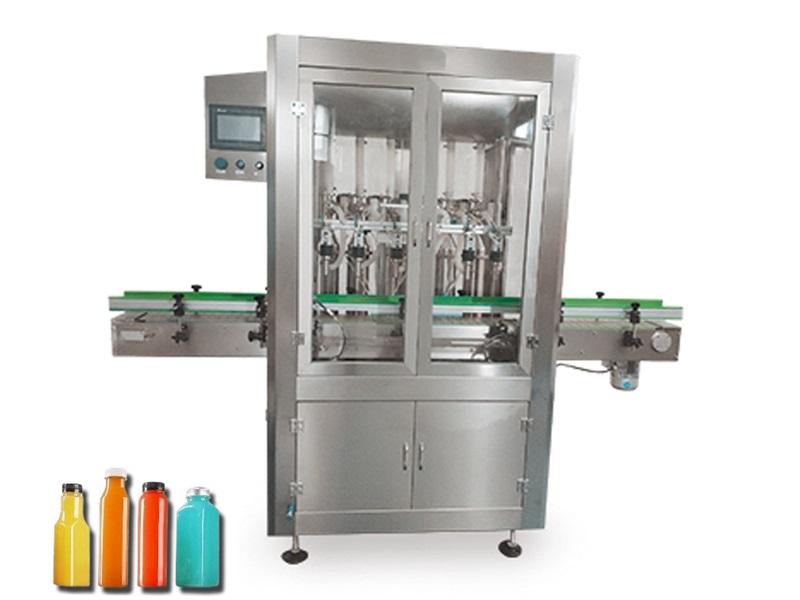

High Speed Automatic Liquid 10-head Servo Filling and Capping Machine


Servo filling and capping machine
Servo filling and capping machine Servo filling and capping machine Servo filling and capping machine Servo filling and capping machine

High Speed Automatic Liquid 10-head Servo Filling and Capping Machine

EPF-GZ8/10

■ It is suitable for filling liquids such as juice and oil.

■ Customized with your packing requirements.

  • Item NO.:

    EPF-GZ8/10

  • Order(MOQ):

    1

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Power:

    380V 50Hz 4KW

  • Dimensions:

    2400*1000*1900mm

  • Weight:

    About 1000kg
Inquiry now
Fully Automatic Servo Filling Machine

TECHNICAL SPECIFICATIONS

Number of filling heads

10 heads

Applicable bottle specification

1000ml

Conveying width

101 chain plates

Power supply

380V 50Hz

Power consumption

4KW

Weight

About 1000Kg

Production capacity

2,500-3,000 bottles per hour (Depending on the size and specification of the bottles）


We offer customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.


CHARACTERISTICS

1.Features & Advantages

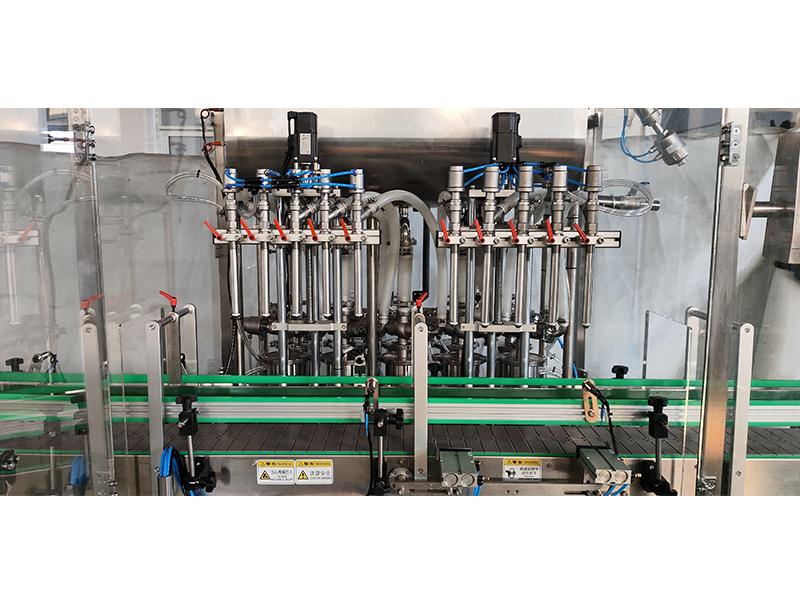

  • The filling is carried out by a servo plunger pump, and the sealing is done with imported corrosion-resistant PTFE sealing plates, which are durable, highly accurate, safe and hygienic.
  • The high-level material box is equipped with an internal limit device. The main unit's electrical box can automatically control the user's feeding pump and pipeline connection to achieve automatic limit and quantitative feeding.
  • Touch screen, PLC, servo system, with memory storage and retrieval functions.
  • Touchscreen program, one-click cleaning, convenient and fast.
  • This equipment operates smoothly. The filling head is equipped with a seal. According to the characteristics of the material, a receiving tray can be installed.
  • The whole machine is designed in accordance with GMP requirements.
  • All stainless steel is made of 304 material.
2.After-sale service


  • Three years warranty. Under warranty, if following the introductions during the use, any damage to the parts of the machine, we will provide free maintenance service or free replacement, and freight costs are requested.

  • After the warranty period, we continue to provide lifetime maintenance services.
