Transparent Film Box Wrapping 3D Packing Machine

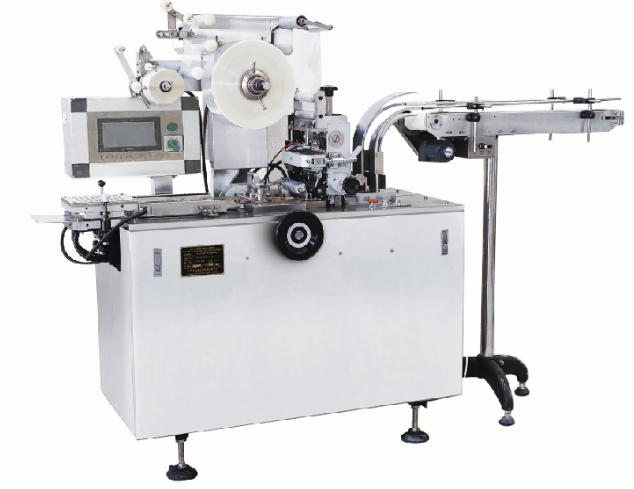

EPK-TBII High Speed Transparent Film 3D Packing Machine
■ This machine function is for food, medicine and daily use,Cosmetics, imaging and other industries packaging;

■ Customized with your packing requirements.

Item NO.:
EPK-TBII
Order(MOQ):
1
Product Origin:
China
Shipping Port:
Xiamen
Power:
2.5kw
Available Size:
Length:120-200mm;Width:40-90mm;Height:15-30mm；
Dimensions:
1300×800×1600mm
Weight:
About 620kg

Inquiry now

Product Detail

Fully Automatic BOPP Film Fold 3D Wrapping Machine

EPK-TBII serie is a general equipment for external packaging of regular cardboard boxes. It uses transparent cellophane,BOPP film for the outer packaging of the packaging box, the packaging of the items beautiful, generous, and anti-counterfeiting of the packaging,Moisture-proof, easy storage, no effect on heat-sensitive items. It is widely used in food, medicine and daily use,Cosmetics, imaging and other industries.

3d packing machine

CHARACTERISTICS

1.Features

The structure is compact and reasonable, the performance is stable and advanced, and the operation is simple and easy to understand;
The host adopts infinitely variable speeds (the number of packaging can be from 160 boxes to 220 boxes/min, and the corresponding number of times can be set according to the difficulty of the packaging items and the packaging box);
PLC automatic control system;
Adopt internationally renowned electrical components and pneumatic components;
The man-machine interface operating system automatically displays the boxing speed and counting;
High-intensity photoelectric monitors the actions of various parts, and if abnormalities occur during operation, it can automatically display and eliminate the fault in time;
Manual and automatic conversion function;
Equipped with an automatic detection system, and alarm, reject, and locate and stop unqualified products;
Automatic shutdown due to mechanical overload.

2.After-sale service

One year warranty. Under warranty, if following the introductions during the use, any damage to the parts of the machine, we will provide free maintenance service or free replacement, and freight costs are requested.
After the warranty period, we continue to provide lifetime maintenance services.

TECHNICAL SPECIFICATIONS

Packaging speed	160-220 pcs/min (Stepless speed regulation)
Package size	Length:120-200mm; Width:40-90mm; Height:15-30mm.
Packing material	BOPP (heat seal type); Thickness :0.022-0.025mm
Total power	2.75kw
Main power supply	450W
Feeder motor power	25W
Side seal soldering iron power	200W
End sealing soldering iron power	400*2＝800W
Upper and lower soldering iron power	300*4＝1200W
Voltage	220V,50Hz
Dimensions	1300×800×1600mm

We offer customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.

Applications

This Automatic Transparent Film Wrapping 3D Packing Machine is widely used in food, medicine and daily use,Cosmetics, imaging and other industries.
