High Speed Automatic Industrial Servo Bottle Double-head Filling Machine for Liquids Oils and Chemicals

EPF-GZ2

■ It is suitable for filling liquids such as juice and oil.

■ Customized with your packing requirements.

Item NO.:
EPF-GZ2
Order(MOQ):
1
Product Origin:
China
Shipping Port:
Xiamen
Power:
380V 50Hz 2KW
Certification:
Available Size:
Dimensions:
2000*800*1800mm
Weight:
About 650kg

Inquiry now

Product Detail

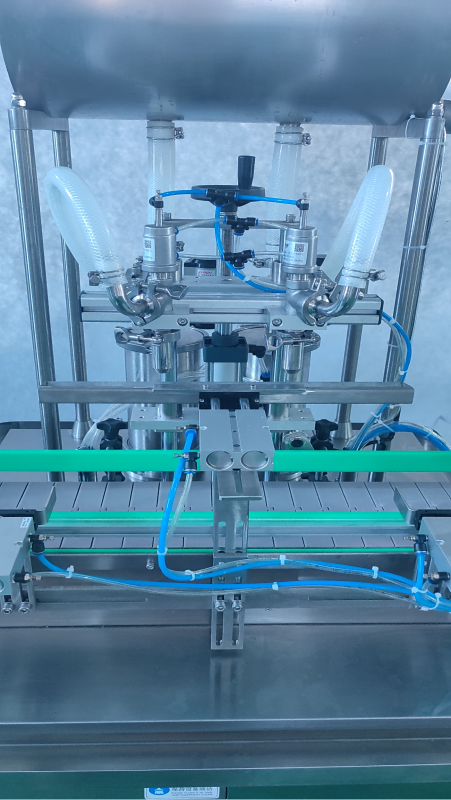

Fully Automatic Servo Filling Machine

Servo filling features high precision, strong versatility of filling stations, no need to change molds for different bottle types, a drip and leakage structure, parameter storage and retrieval, simple operation and convenient cleaning. It is very suitable for filling liquids such as juice and oil.

TECHNICAL SPECIFICATIONS

Number of filling heads	2 heads
Applicable bottle specification	1000ml
Conveying width	101 chain plates
Power supply	380V 50Hz
Power consumption	2KW
Weight	About 650Kg
Production capacity	1000-1200 bottles per hour (Depending on the size and specification of the bottles）

We offer customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.

CHARACTERISTICS

1.Features & Advantages

The filling is carried out by a servo plunger pump, and the sealing is done with imported corrosion-resistant PTFE sealing plates, which are durable, highly accurate, safe and hygienic.
The high-level material box is equipped with an internal limit device. The main unit's electrical box can automatically control the user's feeding pump and pipeline connection to achieve automatic limit and quantitative feeding.
Touch screen, PLC, servo system, with memory storage and retrieval functions.
Touchscreen program, one-click cleaning, convenient and fast.
This equipment operates smoothly. The filling head is equipped with a seal. According to the characteristics of the material, a receiving tray can be installed.
The whole machine is designed in accordance with GMP requirements.
All stainless steel is made of 304 material.

2.After-sale service

Three years warranty. Under warranty, if following the introductions during the use, any damage to the parts of the machine, we will provide free maintenance service or free replacement, and freight costs are requested.
After the warranty period, we continue to provide lifetime maintenance services.
