Roller conveyor, the loading / unloading helper, which is excellent for low to medium volume shipping functions, packaging, assembly and many other application.The conveyor is extended, contracted or configured in simple or compound curves.
Item NO.:
EPC-02AOrder(MOQ):
1Product Origin:
ChinaShipping Port:
Xiamen
Our Flexible Conveyors are either Roller or Skate Wheel, powered or gravity. We also manufacture rigid, heavy duty Extendable Conveyors.
Extendable and Flexible Conveyors are all about versatility and practicality. Talk to E-Pack about getting more flexible (and extendable). We’re specialist manufacturers and we do great quality for a great price.
Extendable And Flexible Conveyors

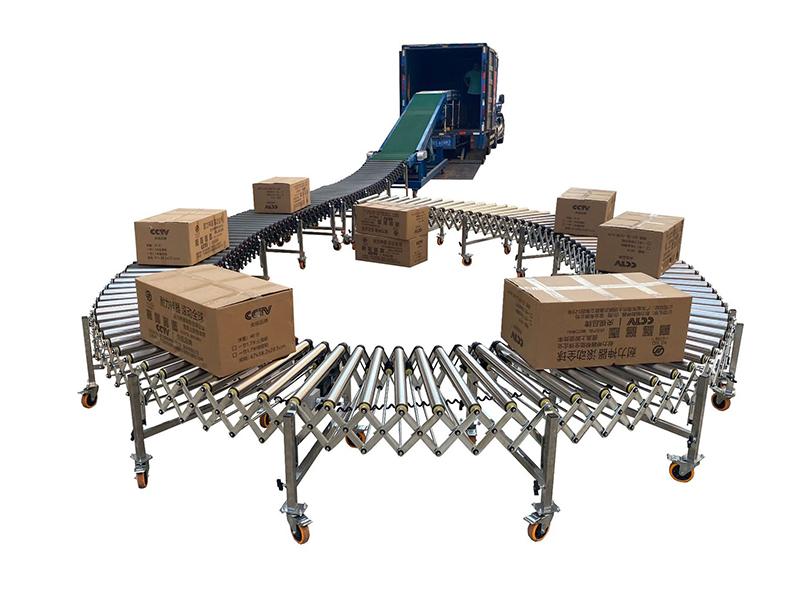

Flexible Roller Conveyor is very suitable for loading / unloading outdoors.
Gravity roller conveyor relies on the roller to complete the conveying, which is suitable for conveying all kinds of boxes, bags, pallets and other goods. Bulk materials, small articles or irregular items need to be transported on pallets or turnover boxes. The unpowered roller conveyor is mainly composed of roller, supporting leg, pulling support and adjusting foot.
It is easy to connect and filter between the unpowered roller conveyors. It has the characteristics of large conveying capacity, high speed, light and fast operation, and can realize multi variety and collinear shunt transportation. It is one of the most widely used conveyor types.
The most important, it’s easy to move and easy to adjust, which make it widely used in loading and unloading outside.
Features
1.Bolted steel construction for lasting strength;
2.Welded double cross members give strong support;
3.Adjustable heights;
4.Castors with Brakes;
5.Swivel Castors allow easy movement. Castor brakes lock both wheels and swivel simultaneously while the conveyor is in use.

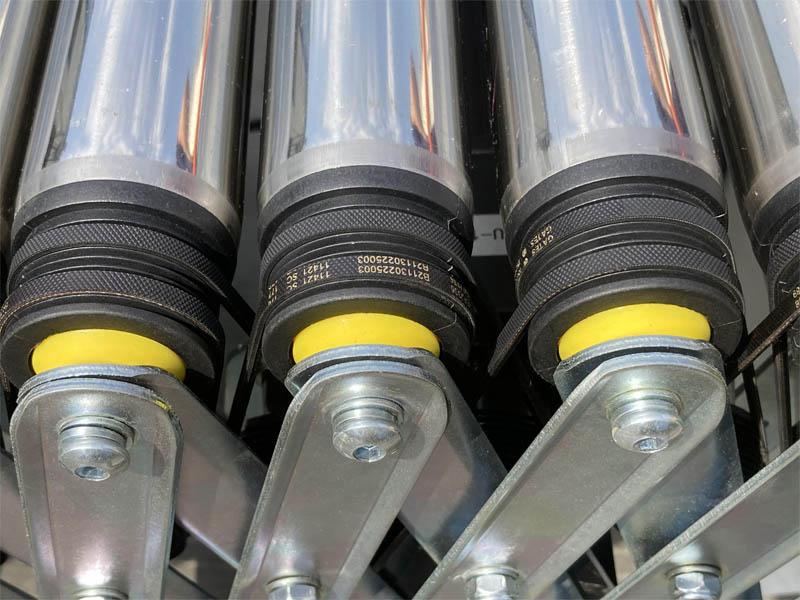

Detailed Photos
Specification
|
Style |
RETRACTABLE ROLLER CONVEYOR W/O POWER |
|
Model |
EPC-02A |
|
Product size |
standard width: 600mm/800mm |
|
Support |
wall thickness of the steel frame: 1.5~3.0mm |
|
Roller Material |
50 diameter, 201 stainless steel, 9pcs/m |
|
Retractable Slice |
bending structure, steel plate stamped part, large loading capacity, bolted connection |
|
Caster |
universal caster with brake, stable conveying |
|
Working Length |
unlimited |
|
Working Width |
standard width: 600mm/800mm, customizable |
|
Working Height |
(1) 45~65cm; (2) 57~86cm; (3) 75~115cm; (4) 95~160cm |
|
Bearing |
standard weight: 60~80kg per meter |
