Horizontal Packing Machines

/

Automatic Rotary Up-paper Pillow Bread Soap Stationery Toys Packing Machine


Pillow packing Machine
Pillow packing Machine Pillow packing Machine Pillow packing Machine

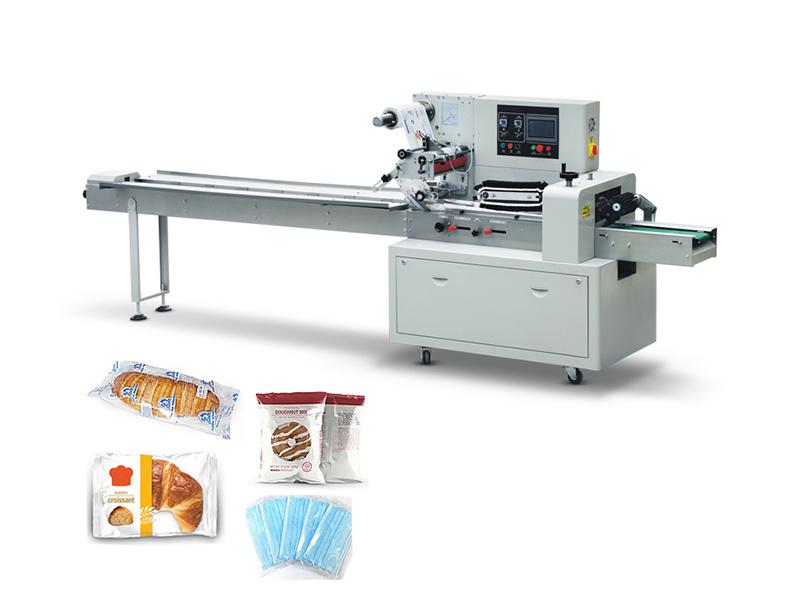

Automatic Rotary Up-paper Pillow Bread Soap Stationery Toys Packing Machine

EPK-P350B

■ It is a new type of intelligent automatic packaging machine.

■ Customized with your packing requirements.

  • Item NO.:

    EPK-P350B

  • Order(MOQ):

    1

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Power:

    220V,50/60HZ,2.6KW

  • Dimensions:

    4020*745*1450mm

  • Weight:

    About 550kg
Inquiry now
Rotary Up-paper Pillow Packing Machine

TECHNICAL SPECIFICATIONS

Model

EPK-P350B

EPK-P350D

Film Width

Max.340mm

Bag length

double blade

65-190mm

90-220mm



single blade

120-280mm

150-330mm

Bag width

50-160mm

Product Height

Max.45mm

Max.60mm

Film roll diameter

Max.320mm

Packing speed

40～230bag/min

Power Specifications

220V,50/60HZ,2.6KW

Machine size:L*W*H

4020*745*1450mm

Machine Weight

550KG

We offer customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.


CHARACTERISTICS

1.Features & Advantages
1. Double motors, converter and PLC controller,flexible bag length setting and cutting,saving time and film. 2. Human-machine interface, convenient and quick parameter settings. 3. Self diagnosis failure function, failure displayed clearly. 4. High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate. 5. Separated PID control system for temperature, suitable for various packing materials. 6. Stopping the machine in selected position, no sticking on the knife and no waste of the film. 7. Simple driving system, reliable working, convenient maintenance. 8. All controlled by program, convenient for function adjusting and upgrading.
2.After-sale service

  • Three years warranty. Under warranty, if following the introductions during the use, any damage to the parts of the machine, we will provide free maintenance service or free replacement, and freight costs are requested.

  • After the warranty period, we continue to provide lifetime maintenance services.
