Customizable Steel Unpowered Conveyor Roller

E-Pack is specialized in different kinds of packaging machines and conveyor systems,we offer customized model in accordance with users’ specific demand. OEM and ODM orders are acceptable.

Unpowered Roller

Unpowered roller depends on human push or in a certain tilt Angle, by gravity down conveying. The conveying distance without power drum line is generally short, suitable for the bottom is flat goods conveying, for bulk materials, small items or irregular appearance of items must be placed on the tray or turnover box. The structure of unpowered drum conveying line is mainly composed of unpowered drum, frame and well type leg. Frame material form is divided into: aluminum structure, carbon steel plastic spraying structure, stainless steel structure. Roller material is divided into: metal roller (carbon steel and stainless steel), plastic roller or plastic wrap treatment.

Rollers are widely used in electronic equipment, assembly line transport machine equipment, furniture factory equipment, logistics equipment, etc. Coated galvanized roller is the main parts and components of belt transportation system.

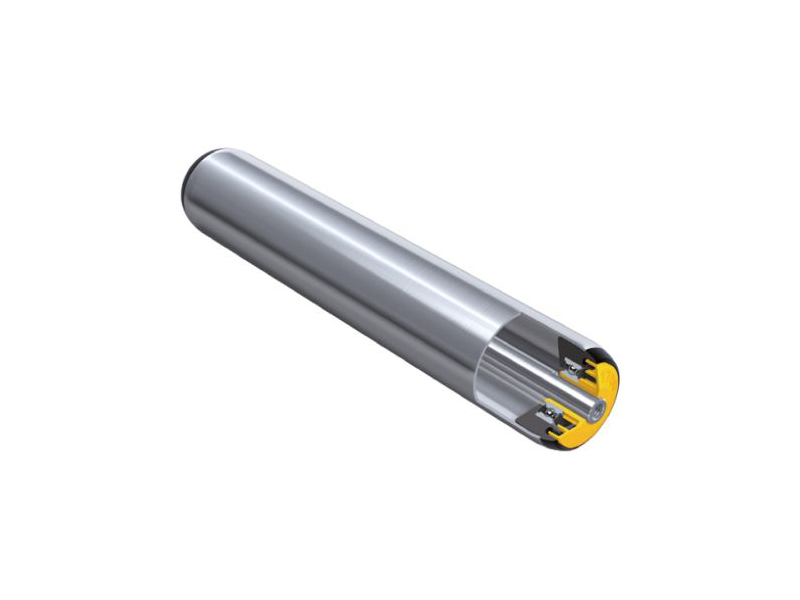

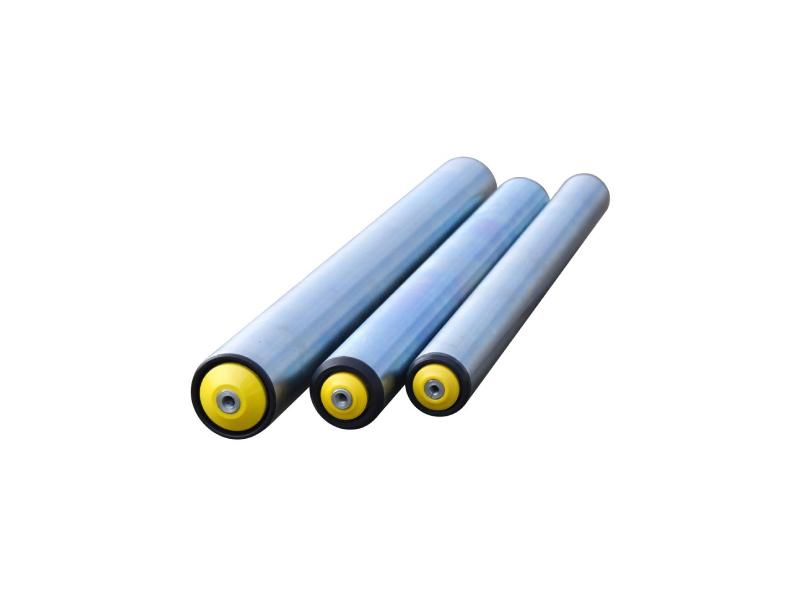

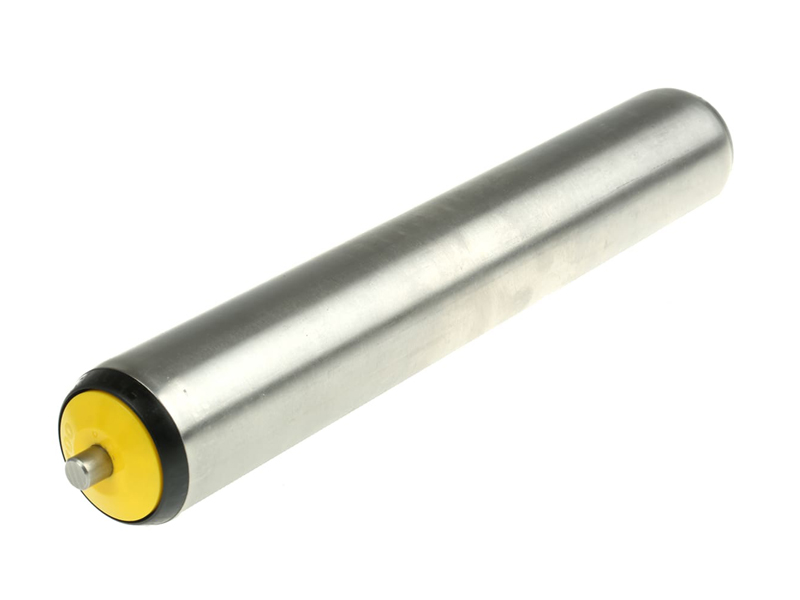

Detailed Photos

Features and Applications

Non-powered roller this kind of equipment is semi-automatic products, objects can be straight line, turn, slope conveying, if necessary can be designed into double, double row, telescopic structure to save space; Simple structure, high reliability, easy to use and maintenance, can bear large impact load. Drum diameter is 25.4, 38.1, 50.8, 57, 60, 63, 75, 89, 104 (mm). Installation method: There is no (single) flat spring shaft, inner (outer) tooth shaft, double flat spring shaft, double open pin hollow shaft. Surface treatment with zinc (chrome), plastic wrap, or other; Roller types are metal (plastic) end cap, cone, block roller, right Angle steering roller; Taper drum small head diameter is 38.1, 50.8(mm); Supporting bearing for precision bearing, stamping bearing, dustproof bearing; It is suitable for conveying all kinds of boxes, bags and other specification objects or objects with flat bottom. Bulk materials, small articles or irregular articles should be placed on pallets or revolving boxes for conveying.
