Automatic Electric PP Strap Belt Pallet Threading Strapping Machine


Automatic Baling Machine
Automatic Baling Machine Automatic Baling Machine Automatic Baling Machine

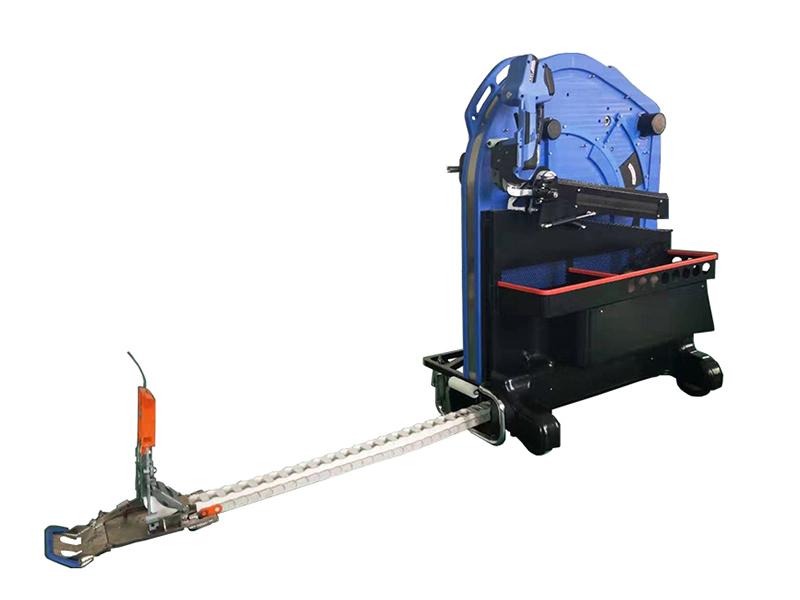

Automatic Electric PP Strap Belt Pallet Threading Strapping Machine

Pallet Strapping Machine with electrically driven chain lance via motor is a hot product in all industries.It can combine the new and old straps directly and save the time of wearing and work load.

  • Item NO.:

    EP-JD008

  • Order(MOQ):

    1

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Certification:

    CE

  • Dimensions:

    L950*W750*H1250MM

  • Weight:

    112kg
Inquiry now

Automatic Pallet Threading Machine

It is a hot product in all industries with electrically driven chain lance via motor . It can make you have an elegant way of strapping without bending down, which is a comfortable way by one person from one side only.Just roll the strapping machine in front of the pallet. Then the Chain Lance pulls the strap through under the pallet and up again on the rear side and over the pallet. The strap is tensioned and welded securely by the sealing head.

Positioning Round Bottle Labeling Machine

CHARACTERISTICS

1.Features

  • Elegant operation via touchscreen and joystick with intuitive user guidance;
  • Easy going and comfortable handling with ergonomically shaped handles;
  • Fully covered for increased working safety in classy design;
  • Auto strapping, feeding and sealing;
  • 3 times higher efficiency;
  • The pallet width is adjusted not mechanically by touch screen;
  • Applicable for object : Width below 2000mm,height below 3000mm;
  • Number of strapping: 400 to 600 per charge.
2.After-sale service
  • One year warranty. Under warranty, if following the introductions during the use, any damage to the parts of the machine, we will provide free maintenance service or free replacement, and freight costs are requested.

  • After the warranty period, we continue to provide lifetime maintenance services.

Product Details


TECHNICAL SPECIFICATIONS

Dimensions

 L950*W750*H1250MM

Strapping Mode

 Friction Welding

Driven Type

 Electric

Net Weight

 112kg

Strap Roll Diameter

 Dia200/408mm

Chain Lance Length

9300mm

Noise Emission Level

 79 dB (a)

Strap Thickness

0.6mm-1.3mm

Strap Width

 12mm-19mm

Applicable for Object

 Width Below 2000mm,Height Below 3000mm

Min Pallet Height

75mm

Min Pallet Width

 200mm

Horizontally Feed Speed

40m/min

Vertically Feed Speed

 60m/min

Number of Straps

Up to 600 depending on size of pallet

Charger

 Three Stage Full Intelligent Charger

Transport Package

Wooden, Pallet

Applications

The Threading strapping tool is a efficient and affordable way of strap and widely used in all industries and sectors. It is used for paper industry,aluminum industry,steel industry,wood,wooden packaging,chemical fiber,cotton,tobacco,chemicals,metal industry and so on.
