Ice Cream Cup Positioning Automatic Round Bottle Labeling Machine

EPL-T401 Positioning Automatic Round Bottle Labeling Machine
It can be applied to the labeling of circular objects such as cosmetics, food, medicine, disinfection of water and other industries.;

■ Customized with your labeling requirements.

  • Item NO.:

    EPL-T401
  • Order(MOQ):

    1
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Power:

    220V/50HZ
  • Certification:

    CE
  • Available Size:

    Length:20~300mm;Width:15~165mm
  • Dimensions:

    About 1950mm x 1200mm x 1530mm
  • Weight:

    About 350kg

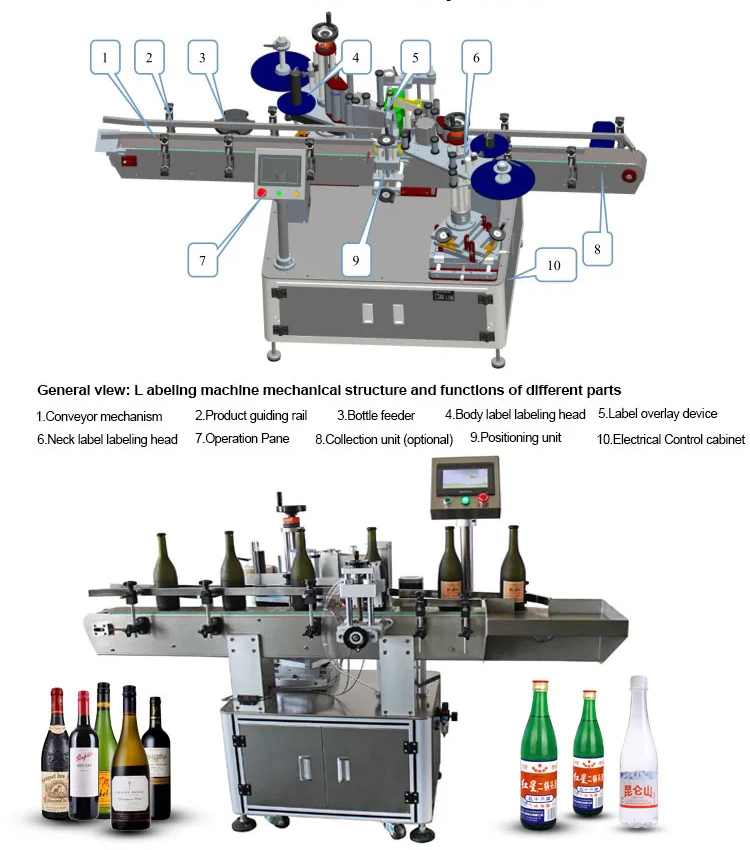

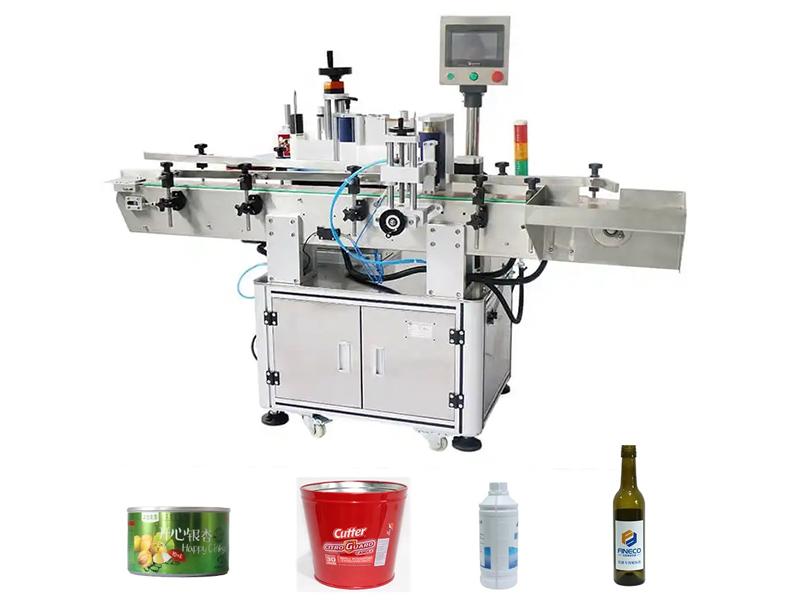

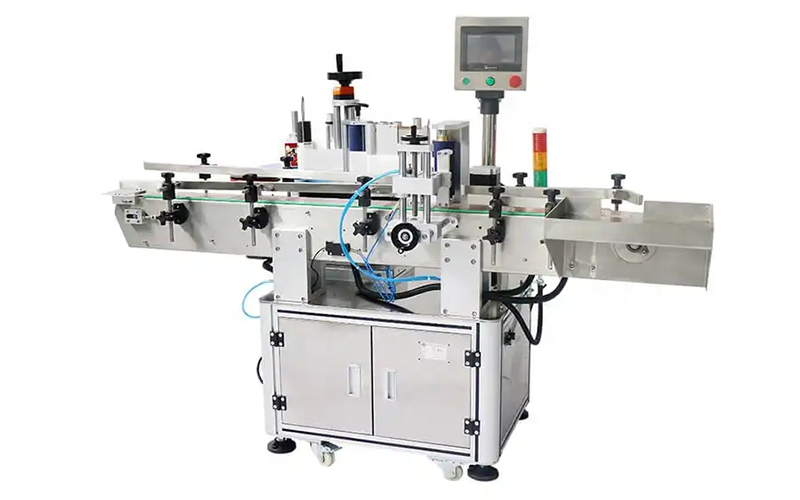

Positioning  Automatic Round Bottle Labeling Machine

Single-label and double-label sticking on bottle-shaped objects are possible with just one device. For double-label sticking, space between the two labels can be adjusted.Optional circumferential positioning detection device can be achieved in the circular surface of the designated location labeling.

Positioning Round Bottle Labeling Machine

CHARACTERISTICS

1.Features

  • Optional ribbon code printer can print production date and batch number, and reduce the bottle packaging procedure to boost production efficiency;
  • Optional automatic turntable machine can be directly connected to the front end of the production line, feeding bottle into the labeling machine automaticlly;
  • Optional hot-stamping coder or inkjet coder;
  • Automatic feeding function (according to the product);
  • Automatic collecting (according to the product);
  • Additional labeling equipment;

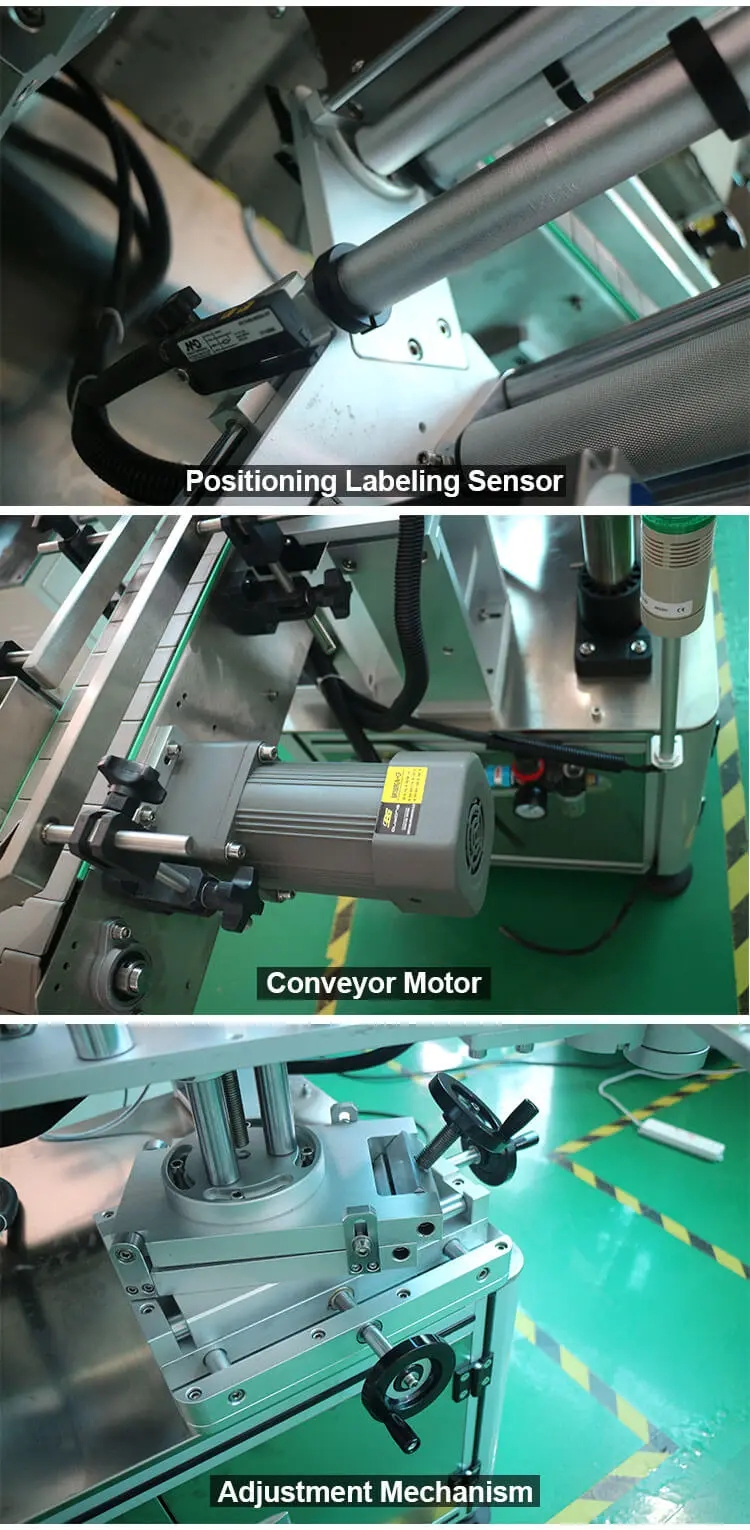

  • Circumferential labeling through positioning;
  • Other functions (according to the customer’s requirements).


2.After-sale service
  • One year warranty. Under warranty, if following the introductions during the use, any damage to the parts of the machine, we will provide free maintenance service or free replacement, and freight costs are requested
  • After the warranty period, we continue to provide lifetime maintenance services.

Product Details

TECHNICAL SPECIFICATIONS

Label Quantity

One or two  labels at a time

Accuracy

±0.5mm

Speed

25~55pcs/min

Label size

Length20~300mm;Width15~165mm

Product size(Vertical)

Diameter30~100mm;height:15~300mm

Label requirement

Roll label;Inner dia 76mm;Outside roll≦300mm

Machine size and weight

L1950mm*W1200mm*H1530mm; 200Kg

Packing size weight

L1910*W1120*L1670mmabout 350kg

Power

AC 220V ; 50/60HZ

Additional features

1. Can add the ribbon coding machine

2. Can add transparent sensor

3. Can add inkjet printer or laser printer

4. Can add Circular positioning function

Applications

Positioning  Automatic Round Bottle Labeling Machine can be applied to the labeling of circular objects such as cosmetics, food, medicine, disinfection of water and other industries.
