Packing line Pallet Stretch Wrapping Machine online stretch wrapper


Pallet Stretch Wrapping Machine
Pallet Stretch Wrapping Machine Pallet Stretch Wrapping Machine

Packing line Pallet Stretch Wrapping Machine online stretch wrapper

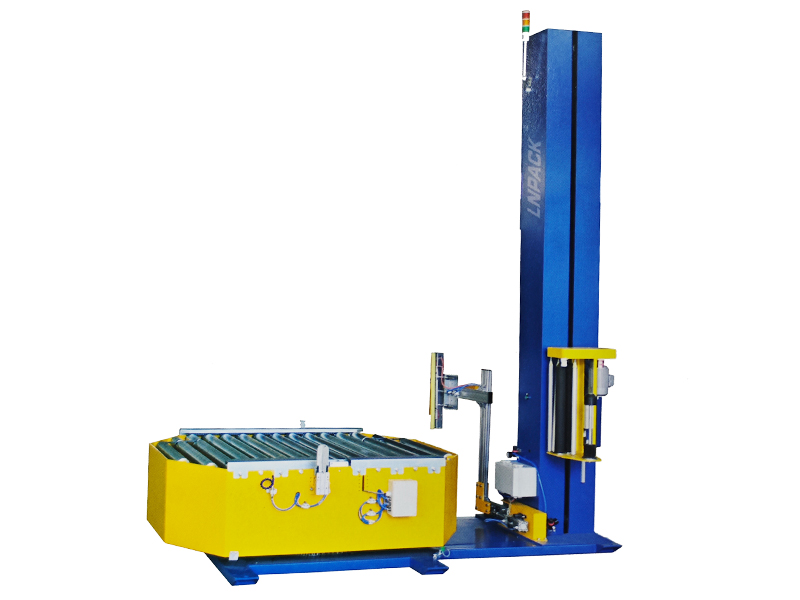

EPP-ZTP2030 Packing line Pallet Stretch Wrapping Machine

■ Online wrapper is applied on flow line wrapping, widely used automated production line;

■ Customized with your packing requirements.

  • Item NO.:

    EPP-ZTP2030

  • Order(MOQ):

    1

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Power:

    3kw,380V 50Hz

  • Certification:

    CE

  • Dimensions:

    2820mm x2000mmx(2700-3300)mm

  • Weight:

    About 900kg
Inquiry now
Online Pallet Stretch Wrapping Machine

This series online wrapper is applied on flow line wrapping, widely used automated production line, improve wrapping efficiency ,labor cost saving .at present, this kind of products have been widely used in chemical industry,electronics,food and beverage ,paper making and other industries.

CHARACTERISTICS

1.Features

  • PLC programmable control, the number of winding top layer, the number of times can be set;
  • Photoelectric switch, self-dynamic measurement of cargo height;
  • With automatic fault diagnosis alarm, inquiry processing and emergency shutdown functions;
  • Manually reinforce the winding function to provide special protection for certain parts;
  • Accurate positioning of the turntable, turntable frequency control.
2.After-sale service
  • Three years warranty. Under warranty, if following the introductions during the use, any damage to the parts of the machine, we will provide free maintenance service or free replacement, and freight costs are requested.

  • After the warranty period, we continue to provide lifetime maintenance services.

TECHNICAL SPECIFICATIONS

Wrapping size
(800-1400)mm x(800-1200)mm
Wrapping efficiency
30-50pallets per hour
Turntable speed
0-15rpm,adjustable
Turntable size
Diameter:2000mm height:500mm,roller conveyor
Turntable load
2000kg
Film carriage
stretch ratio 250%, adjustable
Top platen
optional
Control system
PLC
Pneumatic system
0.6-0.8Mpa 250NL/min
Weight
900kg
Dimension
2820mm x2000mmx(2700-3300)mm
Power
3kw,380V 50Hz

We offer customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.
