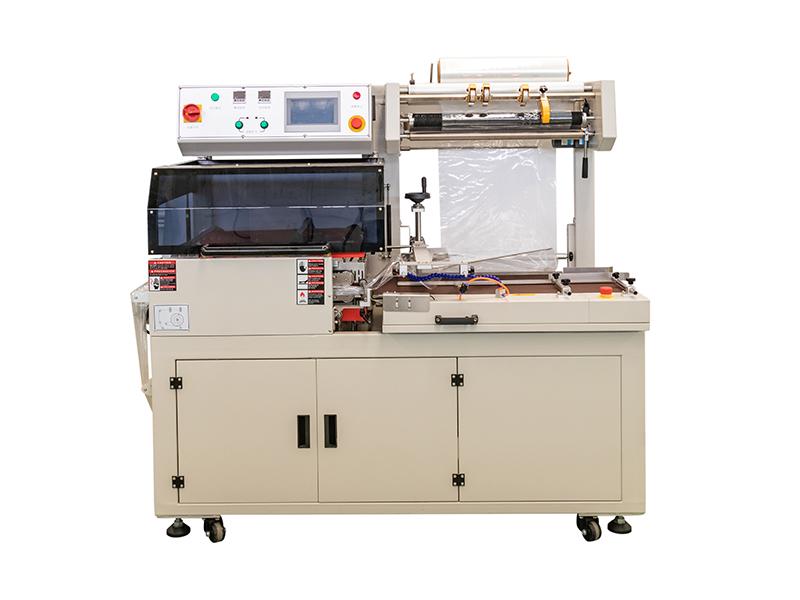

Automatic L-type Sealing and Cutting Machine

The sealing and cutting machine is a fully automatic L type sealing and cutting knife packaging machine, it is our company's highest cost performance and best sales of traditional sealing and cutting packaging machine.
  • Item NO.:

    EPLS-5646
  • Order(MOQ):

    1
  • Product Origin:

    China
  • Shipping Port:

    Xiamen

E-Pack is specialized in different kinds of packaging machines,we offer customized model in accordance with users’ specific demand. OEM and ODM orders are acceptable.

Sealing and Cutting Machine

The sealing and cutting machine is a fully automatic L type sealing and cutting knife packaging machine, it is our company's highest cost performance and best sales of traditional sealing and cutting packaging machine.

heat sealing machines

Features

1.Photocell product sensors;

2.Operates with all shrink film types;

3.Full safety features on seal head;

4.PLC controlled electrical system;

5.Adjustable package transfer area;

6.Easy film loading and changeover;

7.Rugged construction for low maintenance;

8.Adjustable roller perforator air venting device;

9.Variable speed infeed and discharge conveyors;

10.Very easy to use and operator friendly interface;

11.Internal vacuum scrap removal system with manifold;

12.Heavy duty welded structural tube steel construction;

13.Micro-Processor controlled low voltage sealing system;

14.Variable speed film unwide with adjustable inverting head;

15.Speeds up to 30 packages per minute (varies with package size);

16.Heavy duty locking casters and adjustable legs for high mobility and re-positioning.


What's the special of our sealing and cutting machine



  • The Sealing and Cutting Machine is a fully automatic side sealer machine with the function of automatic film feeding punching, sealing cutting, waste film automatically rolling in one time which is widely used in mass production packaging line with high efficiency.
  • The knife is a copper integrated knife, coated with Teflon coating, to avoid plastic material sticking knife,make the incision more beautiful , reduce sealing burst phenomenon, improve the yield.
  • The sealing and cutting knife is equipped with anti-cutting device, so there is no need to worry about the package being cut by mistake.
  • Easy to operate and adjust, when the size of the package changes,the adjustment is very simple, and there is no need to change the mold and the bag maker.


Specification

Working Speed

30 pcs per minute

Accept Package, length

60 - 560 mm

Accept Package, width

60 - 430 mm

Accept Package, height

10 - 160 mm

Electrical

220 v, 50 hz, 1 ph

Power Consumption

3.0 kw

Air Consumption

0.6 mpa

Overall Size

L 1767 x W 1205 x H 1570 mm

Weight

300kgs

Applications

sealing & cutting machine

The Sealing and Cutting Machine is suitable for door panel, photo frame, picture frame, floor, ceramic tile, wood, plastic, hardware industryother longwide product packing, have a completegood contraction effect use with PE film shrink packaging machine together. This machine is applicable to a wide range, high economic efficiency, easy to operate. This machine is suitable for packaging materials PE heat shrinkable film. Compared to the traditional packaging forms, such as cartons, winding, greatly saving the cost of packaging, the packaging of the goods with the appearance clean, beautiful, compact, to ensure the quality of goods suitable for long-distance transport.
